Pipe Stress Analysis
Our Services
Protect Your Piping. Reduce Risk. Improve Reliability.
Dynamic Stress Analysis (Vibration Related)
Dynamic stress analysis evaluates piping response under vibration, transient loads, and time-dependent forces to prevent fatigue failure and resonance-related damage.
We Analyze:

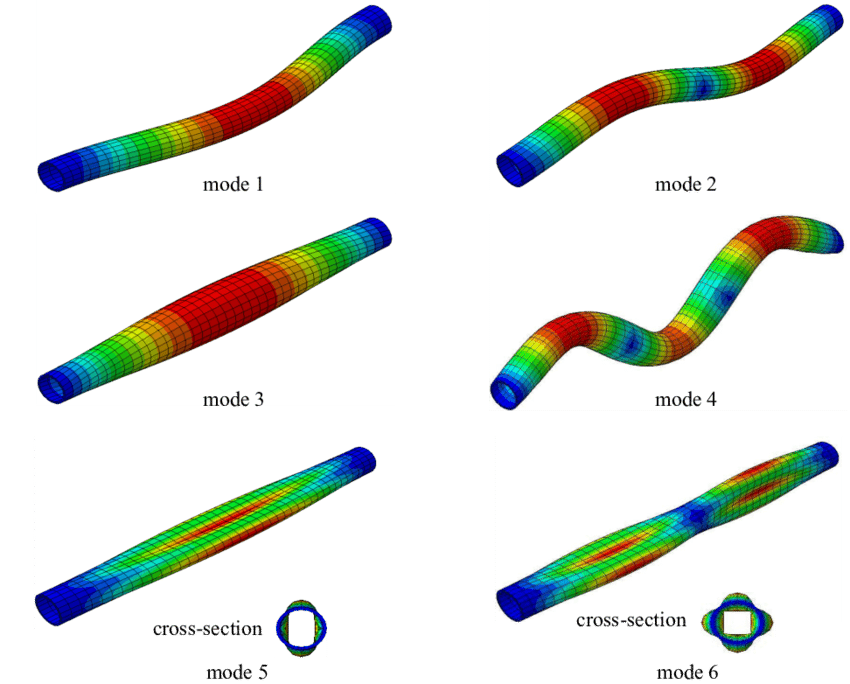

Natural frequency & modal analysis
• Resonance risk identification
• Harmonic response studies
• Flow-induced vibration (FIV)
• Pump & compressor excitation forces
• Slug flow and surge dynamic impact
• Fatigue life estimation

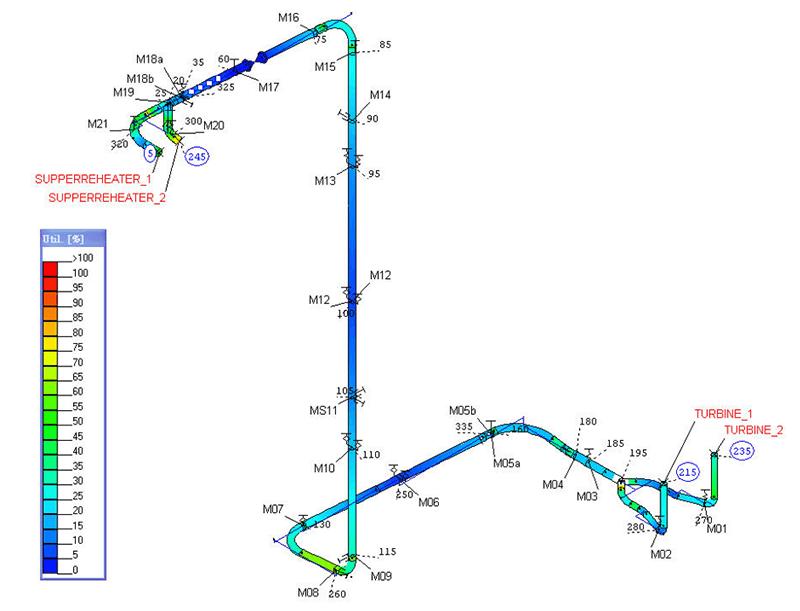

Static stress analysis
Static stress analysis evaluates piping systems under sustained loads such as weight and pressure, as well as displacement loads caused by thermal expansion. The objective is to ensure compliance with applicable codes and to protect connected equipment from excessive loads.
At ORBIT LINE, we analyze piping flexibility, support reactions, and nozzle loads to prevent overstress, leakage, and long-term structural damage.
Pipe Support design & optimization
Proper pipe support design is critical to controlling thermal movement, minimizing stress concentrations, and protecting connected equipment. Poorly positioned or improperly selected supports can lead to excessive vibration, anchor overload, nozzle damage, and structural instability.
At ORBIT LINE, we evaluate and optimize pipe supports based on stress analysis results to ensure correct load distribution and controlled flexibility.
